Shank Rods and Bits

Micon Products Ltd. supplies high quality shank rods with R25 rope thread also known as 1” rope thread.  We stock lengths up to 12’.  We also keep good inventory of both carbide cross bits and button bits from 1-1/4” up to 3”.  R25 rods are also available as extension rods both in male/male and MF style.

7/8" x 4-1/4" SHANK

Part # Length Under Collar Weight Lbs
30041-0 STRIKER BAR
117-0241-1'6"
117-0241-2'
117-0241-2'6"
117-0241-3'
117-0241-4'
117-0241-5' 11½
117-0241-6' 13¾
117-0241-8' 17¾
117-0241-10' 22
117-0241-12' 26¼
117-0241-14' 30¼
7/8" x 3-1/4" Shank Also Available
Other Lengths Available On Request


1" x 4-1/4" SHANK

Part # Length Under Collar Weight Lbs
31041-0 STRIKER BAR  3¾
127-0341-1'6" 5
127-0341-2' 6
127-0341-2'6"  7½
127-0341-3' 10½
127-0341-4' 11¼
127-0341-5' 13¾
127-0341-6' 16¼
127-0341-8' 21¼
127-0341-10' 26¼
127-0341-12' 31¼
127-0341-14' 36¼
Other Lengths Available On Request

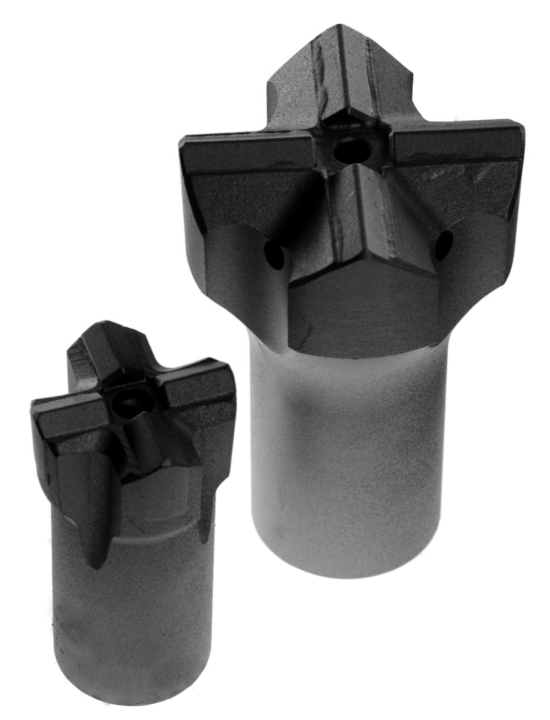

CARBIDE CROSS BIT
R25 (1" ROPE) THREAD

Part # Bit Size
R25C32 1 ¼"
R25C35 1 3/8"
R25C38 1½"
R25C41 1 5/8"
R25C45 1¾"
R25C48 1 7/8"
R25C51 2"
R25C57 2¼"
R25C64 2½"
R25C76 3 "

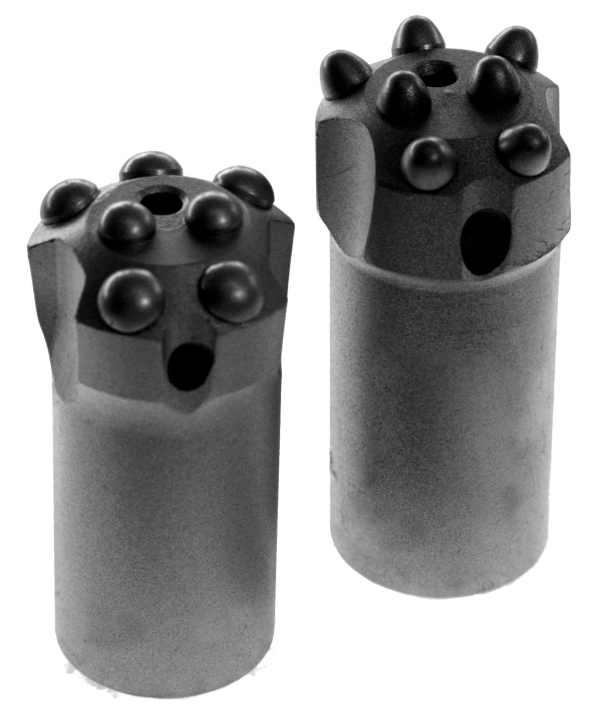

CARBIDE BUTTON BIT
R25 (1" ROPE) THREAD

Part # Bit Size
R25B33 1 ¼"
R25B35 1 3/8"
R25B38 1 ½"
R25B41 1 5/8"
R25B45 1 ¾"
R25B48 1 7/8"
R25B51 2"
R25B57 2 ¼"
R25B64 2 ½"
R25B76 3"


MF SPEED RODS
R25 (1" ROPE)

Part # Weight Lbs
727-4141MF-2' 6
727-4141MF-4' 12
727-4141MF-6' 17
727-4141MF-8' 22
727-4141MF-10' 27
727-4141MF-12' 32


EXTENSION RODS
R25 (1" ROPE)

Part # Weight Lbs
727-4141-2' 5
727-4141-3'
727-4141-4' 10
727-4141-5' 12½
727-4141-6' 15
727-4141-8' 20
727-4141-10' 25
727-4141-12' 30


R25 COUPLING

Part #
226-4141
